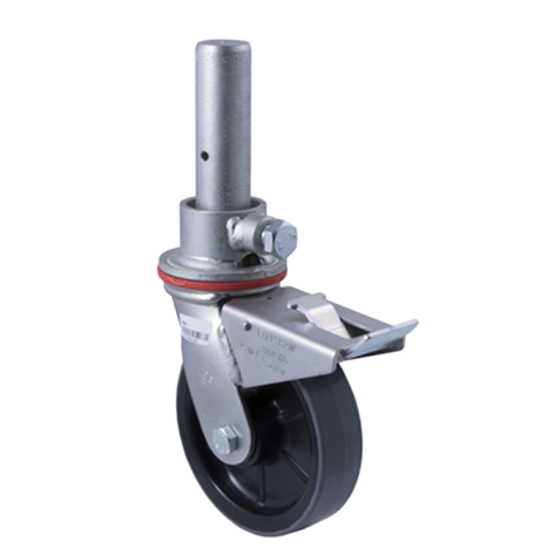

Heavy Duty Scaffold Castors 360-500kg


Quality Australian Made H Series Scaffold castors are able to carry up to 500 kg each, the range of H Series Scaffold castors are available in 150 and 200 mm sizes, and in a wide range of mount types. Scaffolding castors meet OHS codes and Australian standards. An effective wheel/swivel brake is fitted to ensure maximum stability. Easy process to order: 1> Pick wheel type - Polyurethane on nylon (Fallshaw HUR wheel) 2> Pick Fork Type - Zinc plated Core Coat™ in bolt hole with pintle or ISO plate, with total brake configuration 3> Call Us with above info and quantities Scroll Down to see the many options / combinations.
Call for pricing

Heavy Duty Scaffold Castors 360-500kg

Load rating:360–500 kg
Wheels:Polyurethane on nylon (Fallshaw HUR wheel)
Forks:Zinc plated Core Coat™ in bolt hole with pintle or ISO plate, with total brake configuration
Warranty:Three years
Country of originMade in Australia

Super Easy to Order / Get a Quote

Step 1 - Pick Wheel Type

HUR150
HUR200

Cast iron

Roller Bearing

Polyurethane

150mm

360-450kg

Cast iron

Roller Bearing

Polyurethane

200mm

500kg

Step 2 - Pick Mount Type

Socket mount
(to fit over tubes)
Socket mount
(to fit over tubes)
ISO plate mountISO plate mount
SC08SC13SC61SC18

Swivel castor with scaffold pintle and total brake

51 mm socket mount to fit over tubesWheel

Max load: 360kg
Mount hight: 188mm
Turning radius: 165mm
Wheel diameter: 150mm

Swivel castor with scaffold pintle and total brake

51 mm socket mount to fit over tubes

Max load: 500kg
Mount hight: 238mm
Turning radius: 175mm
Wheel diameter: 200mm

Swivel castor with ISO plate and total brake

130 mm 100 mm ISO plate

Max load: 360kg
Mount hight: 188mm
Turning radius: 165mm
Wheel diameter: 150mm
Plate size: 130 x 100mm

Swivel castor with ISO plate and total brake

130 mm 100 mm ISO plate

Max load: 500kg
Mount hight: 238mm
Turning radius: 175mm
Wheel diameter: 200mm
Plate size: 130 x 100mm

Solid stem mount
(fully welded cup)
Solid stem mount
(fully welded cup)
Stem mount
(to fit into tubes)
Stem mount
(to fit into tubes)
SC62
SC15
SC30
SC11

Swivel castor with ISO plate and total brake

38 mm solid stem mount with fully welded cup

Max load: 360kg
Mount hight: 188mm
Turning radius: 165mm
Wheel diameter: 150mm

Swivel castor with scaffold pintle and total brake

38 mm solid stem mount with fully welded cup

Max load: 500kg
Mount hight: 238mm
Turning radius: 175mm
Wheel diameter: 200mm

Swivel castor with scaffold pintle and total brake

38 mm stem mount to fit into tubes

Max load: 360kg
Mount hight: 188mm
Turning radius: 165mm
Wheel diameter: 150mm

Swivel castor with scaffold pintle and total brake

38 mm stem mount to fit into tubes

Max load: 500kg
Mount hight: 238mm
Turning radius: 175mm
Wheel diameter: 200mm

Model No
Description
Wheel
Max Load (kg)
Diameter x Tread (mm)
SC08
HUR150/HZHTB + 51 stem Scaffold - Castor
HUR150
450
150 x 40
SC61
HUR150/HZPTB with ISO plate Scaffold - Castor
HUR150
450
150 x 40
SC62
HUR150/HZHTB + 38 stem-cap Scaffold - Castor
HUR150
450
150 x 40
SC30
HUR150/HZHTB + 38 stem Scaffold - Castor
HUR150
450
150 x 40
SC13
HUR200/HZHTB + 51 stem Scaffold - Castor
HUR200
500
200 x 48
SC18
200mm Polyurethane swivel castor, 500Kg capacity Scaffold range
HUR200
500
200 x 48
SC15
HUR200/HZHTB + 38 stem-cap Scaffold - Castor
HUR200
500
200 x 48
SC11
HUR200/HZHTB Scaffold castor with
150mm x 38mm solid stem 200mm wheel, 500Kg capacity
HUR200
500
200 x 48


Step 3 - Call Us with above info and quantities
